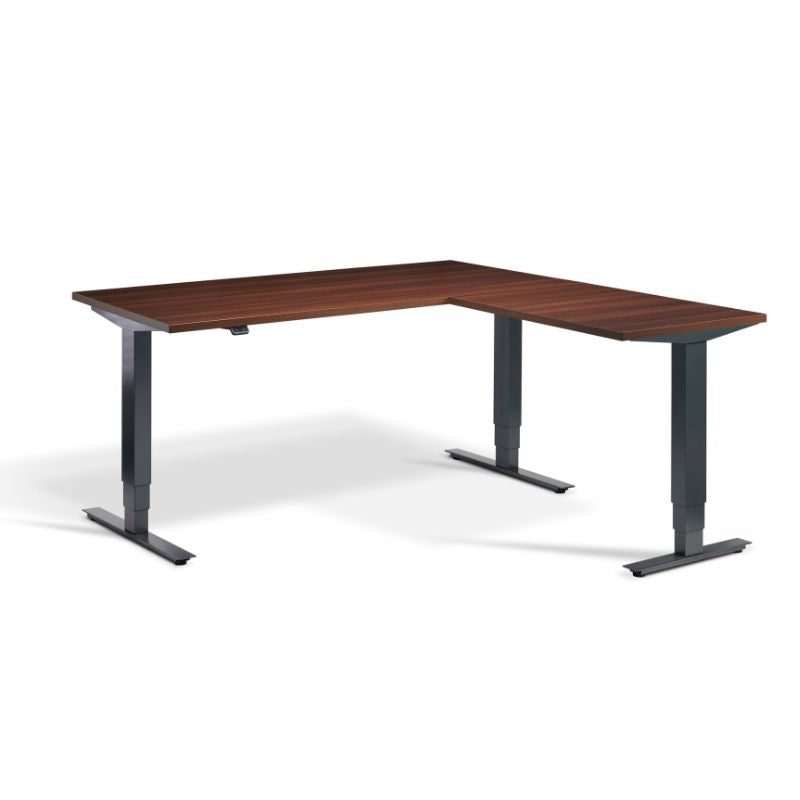

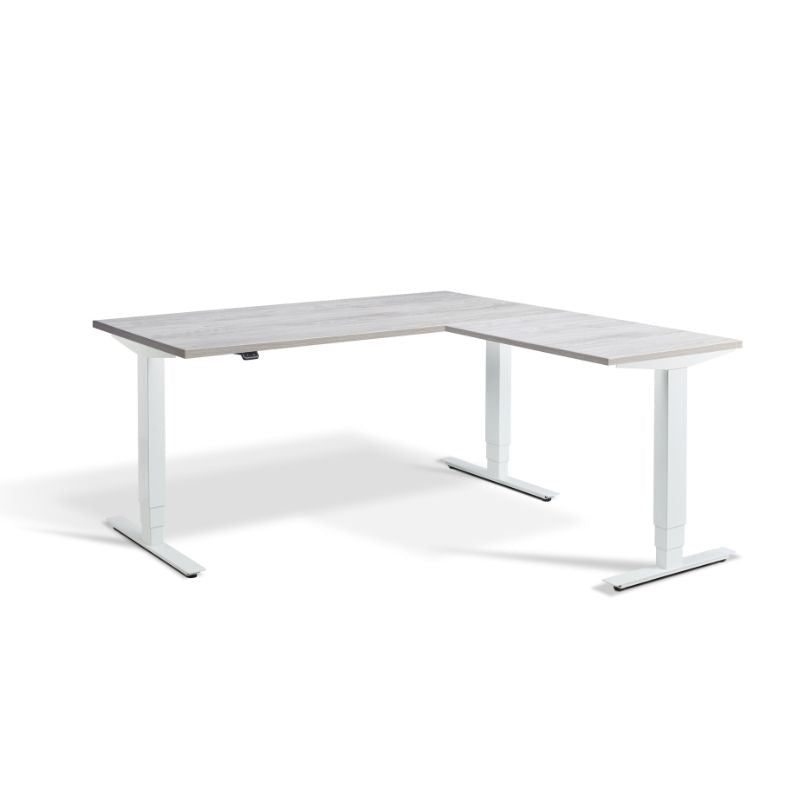

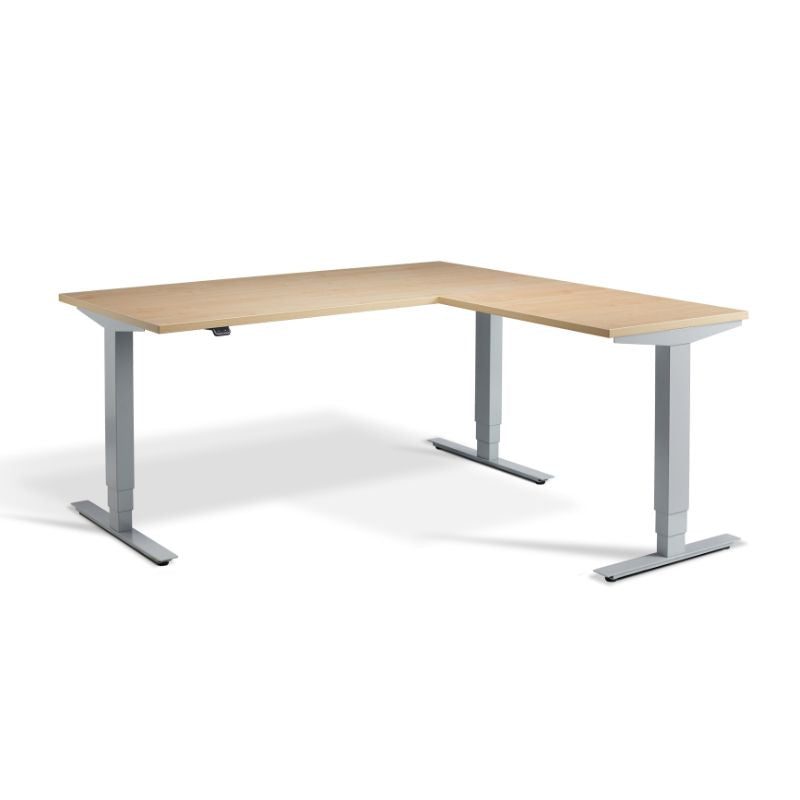

Lavoro Design Advance Corner Adjustable Desk, Woodgrain Top

FRAME

Guarantee 5 yrs

Frame Width Adjustment 1150 – 1740 mm x 1545 – 2135 mm

Height Range (Inc. 25mm Top) 625 – 1285 mm (± 5mm)

Stroke 660 mm

Side Bracket Depth 540 mm

Foot Depth 690 mm x 2, 490 mm x 1 (return)

Max Even Load Capacity 160 kg

Total Frame Weight 53 kg

Testing Operational Life 10,000 cycles at full rated load

Voltage 230V AC Input, 24V DC operation

Operational Speed 40 mm per second

Standby Power < 0.3 W

Max Operational Power 410 W

Programmable Min/Max Height Yes

Duty Cycle 10% – 2 mins on, 18 mins off

Noise Level < 42 dB

Anti-Collision Yes

Compliance UKCA and CE Conformity
Machine Directive 2006/42/EC
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EC
REACH, WEEE and RoHS 3 2015/863
EN 527-1:2011 Type A, EN 527-2:2016 ISO 21016
UL 962 ETL Listed

DESKTOP

Guarantee 5 yrs

Material 25 mm MFC

Edging 2 mm ABS

Compliance FSC® Certified

Stock Sizes 1600 x 1600 mm
1800 x 1600 mm
(2 piece tops)

PACKAGING

Frame Size – 840 x 380 x 120 mm (per box)
Weight – 57 kg (total)
Quantity – 2 (total)

Top (size dependent) Size – (1700 – 1900) x 900 x 30 mm x 1
1100 x 700 x 30 mm x 1
Weight – 34 – 36 kg (total)
Quantity – 2 (total)

INSTALLATION

Build Time (per unit) 30 – 40 mins

Suitable for self-assembly Yes

FEATURES

• Height Range: 630 – 1290mm
• 5 Year Guarantee
• Speed: 40mm Per Second
• Fast Delivery
• Load Capacity: 160kg
• Triple Motor Desk
